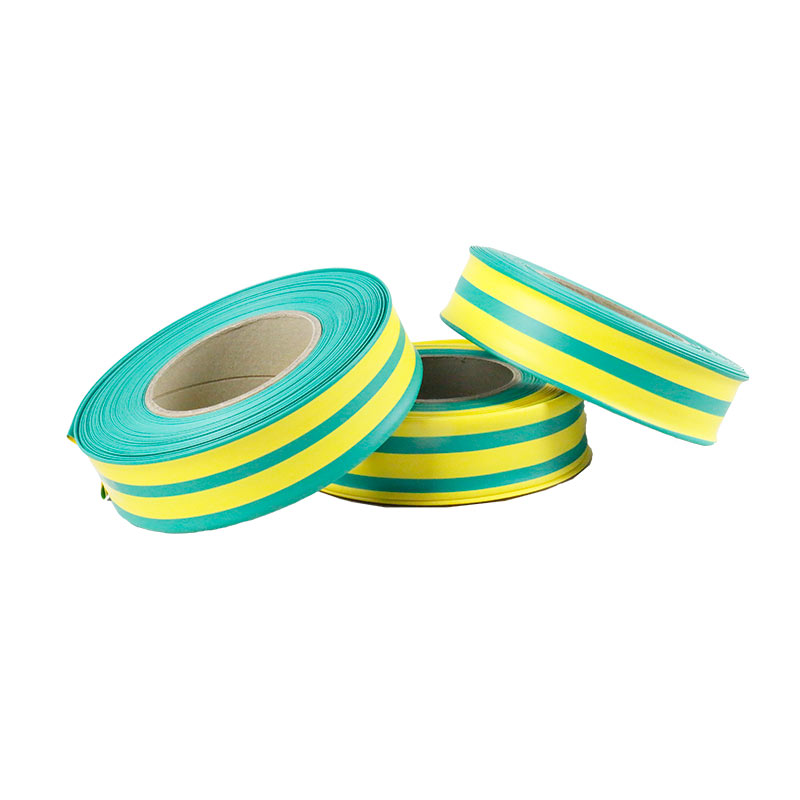

1. LD-4 series yellow and green double color heat shrinkable sleeves are made of high-quality yellow and green polyene carp materials through special processing.
After the product is formed, it is crosslinked by electron accelerator irradiation and continuously expanded. This product has the advantages of softness, flame retardancy, fast shrinkage, bright and durable color and stable performance. It is widely used in the identification of wire harness or ground wire in cable, and the identification of special cables or pipes.
2. ° features: soft, flame retardant, bright and durable color. Applicable range: - 55 ℃ - 125 ℃:; Initial shrinkage temperature: 70 ℃; Complete shrinkage temperature: 125 ℃;
The supply is timely and large. It is easy to use and can be shrunk by heating with oven and hot-air gun.
Standard color: yellow and green.
Test items: | performance index |
Continuous service temperature | -55-125 ° C |
Tensile strength | ≥10.4MPA |
Longitudinal shrinkage | ≤8% |
Flame retardancy | pass |
Breakdown strength | ≥15kv/mm |
Volume resistivity | ≥1014 Ω |
Specifications | Inside diameter before shrinkage | Wall thickness before contraction | Inside diameter after shrinkage | Wall thickness after shrinkage | Standard packaging | Scope of application |
Φ2.0 | 2.2±0.3 | 0.25 ±0.05 | 0.98 ±0.1 | 0.35 ±0.05 | 200 | 1.1-1.8 |
Φ3.0 | 3.2 ±0.4 | 0.25±0.05 | 1.45 ±0.2 | 0.35 ±0.05 | 200 | 1.6-2.7 |
Φ4.0 | 4.8±0.4 | 0.25 ±0.05 | 1.96 ±0.2 | 0.35 ±0.05 | 200 | 2.1 ~3.6 |
Φ5.0 | 5.2 ±0.4 | 0.25 + 0.05 | 2.48 + 0.2 | 0.35 + 0.05 | 100 | 2.6-4.5 |
Φ6.0 | 6.6 ±0.4 | 0.28±0.10 | 2.96 + 0.3 | 0.45 ±0.05 | 100 | 3.1 -5.4 |
Φ7.0 | 7.2 ±0.4 | 0.28 + 0.10 | 3.48 + 0.3 | 0.45±0.10 | 100 | 3.7-6.3 |
Φ8.0 | 8.6±0.5 | 0.28 + 0.10 | 3.95 ±0.3 | 0.45 + 0.10 | 100 | 4.2-7.2 |
Φ10 | 10.2±0.5 | 0.30±0.10 | 4.90±0.3 | 0.50±0.10 | 100 | 5.2-9.0 |
Φ12 | 12.6 + 0.5 | 0.30 + 0.10 | 5.90±0.5 | 0.50 + 0.10 | 100 | 6.2-11 |
Φ14 | 14.2 + 0.5 | 0.35 + 0.10 | 6.90 + 0.5 | 0.50±0.10 | 100 | 7.3-13 |
Φ16 | 16.2±0.6 | 0.38±0.10 | 7.90 ±0.5 | 0.50±0.10 | 100 | 8.3-15 |
Φ18 | 18.2±0.6 | 0.40±0.10 | 9.00 ±0.5 | 0.60±0.10 | 100 | 9.4-17 |
Φ20 | 20.2 ±0.8 | 0.40±0.10 | 9.90 ±0.5 | 0.70±0.15 | 100 | 11.4-19 |
Φ25 | 25.3 ±0.8 | 0.45±0.15 | 12.30±1.0 | 0.70±0.15 | 25 | 12.8-24 |
Φ30 | 30.2 + 0.8 | 0.45 + 0.15 | 14.70+1.0 | 0.70 + 0.15 | 25 | 16-29 |
Φ35 | 35.2 ±0.8 | 0.50 + 0.15 | 17.30±1.0 | 0.80±0.15 | 25 | 18-34 |
Φ40 | 40.0+1.0 | 0.50 + 0.15 | 19.80±1.0 | 0.80±0.15 | 25 | 21-392 |
Φ50 | 50.0+1.0 | 0.50 + 0.15 | 24.80 ± 1.0 | 0.80 + 0.15 | 25 | 26 〜?49 |
Φ60 | 60.0 ±1.0 | 0.60±0.15 | 29.80 ±1.0 | 0.80±0.15 | 25 | 35-55 |
Φ70 | 70.0 ±1.0 | 0.60±0.15 | 34.00 ±2.0 | 1.00±0.15 | 25 | 40-65 |
Φ 80 | 80.0 ±1.0 | 0.60±0.15 | 39.00 ±2.0 | 1.00±0.15 | 25 | 45-75 |
Φ 90 | 90.0 ± 1.0 | 0.60±0.15 | 44.00 ±2.0 | 1.00±0.15 | 25 | 50-88 |
Φ100 | 100.0 + 2.0 | 0.65 + 0.20 | 49.00 + 2.0 | 1.00 + 0.15 | 25 | 55-95 |
Φ120 | 120.0±2.0 | 0.70 ±0.20 | 59.00 ±2.0 | 1.20±0.15 | 25 | 65-115 |
Φ150 | 150.0±2.0 | 0.70 + 0.20 | 74.00 ±2.0 | 1.20 + 0.15 | 25 | 80-145 |
Φ18O | 180.0±2.0 | 0.70 + 0.20 | 88.00 + 2.0 | 1.20 + 0.15 | 25 | 95-175 |
