High pressure heat shrinkable terminal

High pressure heat shrinkable terminal

Terminal treatment applied to 35kV cross-linked cables

0.00
0.00

Product Description

Terminal treatment applied to 35kV cross-linked cables

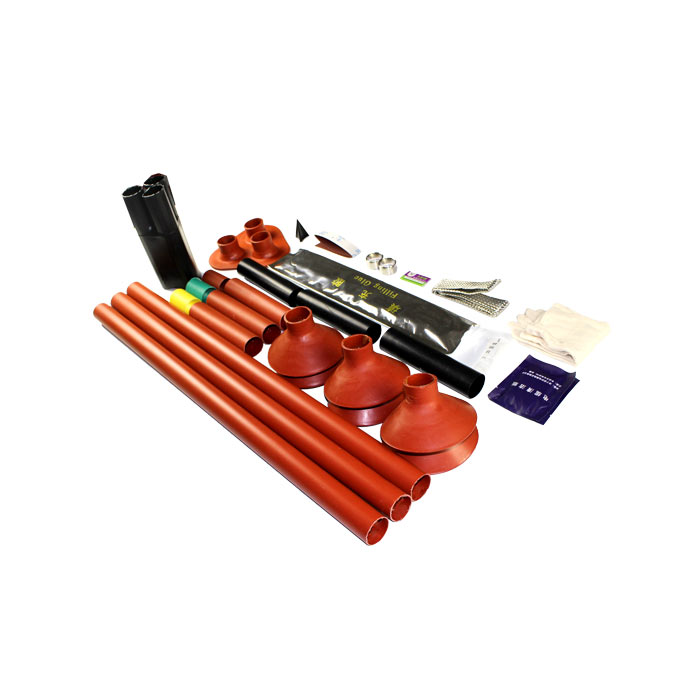

35kV heat shrinkable terminals are widely used in the terminal treatment of 35kV cross-linked cables. Appropriate stress control tapes can be provided according to the different cross-sectional sizes of the cables, facilitating installation and construction, thereby uniformly improving the electric field distribution; The advanced double ground wire technology is adopted, and the steel armor and copper shield ground wires of the cable are grounded separately. The inspection by Wuhan High Voltage Research Institute has confirmed that the technology is advanced and the operation is more reliable.

35kV热缩终端

试验项目

试验要求

试验结果

详注

工频耐压

105kv 1min不闪络,不击穿

105kv 1min组合试样均未闪络和击穿

合格

局部放电试验

39kv≤10pC

组合试样各相放电量≤5pC

合格

负荷循环试验3个周期

5h,加热时,3h冷却,加热时,导体温度为95℃

按标准要求完成三次负荷循环试验

由一下试验评定

冲击电压试验1.2/50us正负极性各一次

250KV正负极性允许闪络一次,但不计入总试验次数

250KV正负极性各10次组合试样均为击穿和闪络

合格

直流电压试验负极性

156KV 15min不闪络,不击穿

156KV 15min组合试样均为击穿和闪络

合格

4h工频电压试验

104KV 4h不闪络,不击穿

104KV 4h组合试样均为击穿和闪络

合格


产品名称

规格型号

适用电缆截面

热缩单芯户内终端

NRSY-35/1.1

50-120mm2

NRSY-35/1.2

150-300mm2

NRSY-35/1.3

400-500mm2

热缩单芯户外终端

WRSY-35/1.1

50-120mm2

WRSY-35/1.2

150-300mm2

WRSY-35/1.3

400-500mm2

热缩三芯户内终端

NRSY-35/3.1

50-120mm2

NRSY-35/3.2

150-300mm2

NRSY-35/3.3

400-500mm2

热缩三芯户外终端

WRSY-35/3.1

50-120mm2

WRSY-35/3.2

150-300mm2

WRSY-35/3.3

400-500mm2
