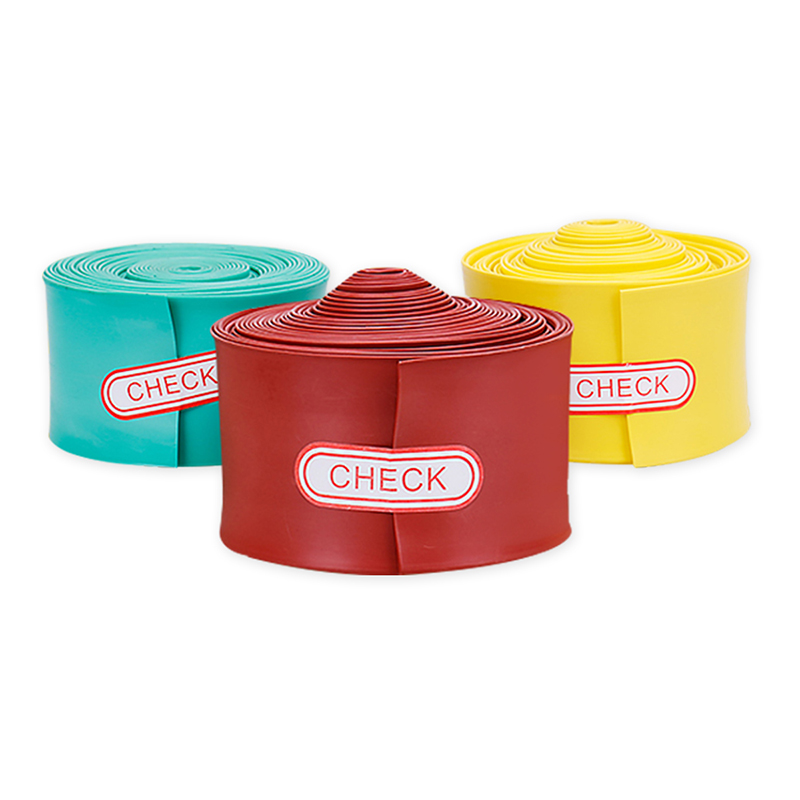

• 10-35kV busbar insulation protection
Suitable for insulation protection of various irregular products
Special shaped spiral heat shrinkable insulation protection tape is suitable for voltages up to 35kV, making it easier to install and peel off, and can be used with other insulation products
■ Features:
Double layer, the outer layer will shrink after heating, and the inner layer adhesive after melting has good sealing performance, with excellent UV resistance, electrical insulation, and flame resistance.
■ Use:
Clean the surface of the product being used to ensure that there is no dust or oil on the surface. Use a heating gun to slowly heat the surface of the product, making sure to evenly heat the surrounding area of the product.
• 10-35kV busbar insulation protection
Suitable for insulation protection of various irregular products
Special shaped spiral heat shrinkable insulation protection tape is suitable for voltages up to 35kV, making it easier to install and peel off, and can be used with other insulation products
■ Features:
Double layer, the outer layer will shrink after heating, and the inner layer adhesive after melting has good sealing performance, with excellent UV resistance, electrical insulation, and flame resistance.
■ Use:
Clean the surface of the product being used to ensure that there is no dust or oil on the surface. Use a heating gun to slowly heat the surface of the product, making sure to evenly heat the surrounding area of the product.
• 10-35kV busbar insulation protection
Suitable for insulation protection of various irregular products
Special shaped spiral heat shrinkable insulation protection tape is suitable for voltages up to 35kV, making it easier to install and peel off, and can be used with other insulation products
■ Features:
Double layer, the outer layer will shrink after heating, and the inner layer adhesive after melting has good sealing performance, with excellent UV resistance, electrical insulation, and flame resistance.
■ Use:
Clean the surface of the product being used to ensure that there is no dust or oil on the surface. Use a heating gun to slowly heat the surface of the product, making sure to evenly heat the surrounding area of the product.
项目 Property | 数据 Typical data |
拉伸强度 Tensile strength (Mpa) | N15 |
断裂伸长率 Elongation at break (%) | >400 |
体积电阻率 \0lume resistivity (Q/cm) | 1.0 x 10'3 |
击穿强度 Dielectric strength (kV/mm) | n25 |
热老化Heat shock | No crack, felt well |
冲击电压 Impulsion voltage (kV) | 42 |
氧指数 Flammability | n25 |
铜腐蚀 Defend mildew | Level 2 |
型号Type | 厚度 Thickness (mm) | 长度 Length (m) | 宽度 Width (mm) | 电压等级Voltage grade |
LDRSD-1 | 0.4 | 1 | 50 | 1kv |
LDRSD-10 | 0.8 ±0.1 | 5 | 50 | 10kV |
LDRSD-35 | 1.4 ±0.1 | 5 | 50 | 35kV |
