Silicone rubber busbar

Widely used in aviation, electronics, petroleum, chemical industry, machinery, electrical appliances, medical and other fields

List price： 0.00

Price： 0.00

Product Description

Widely used in aviation, electronics, petroleum, chemical industry, machinery, electrical appliances, medical and other fields

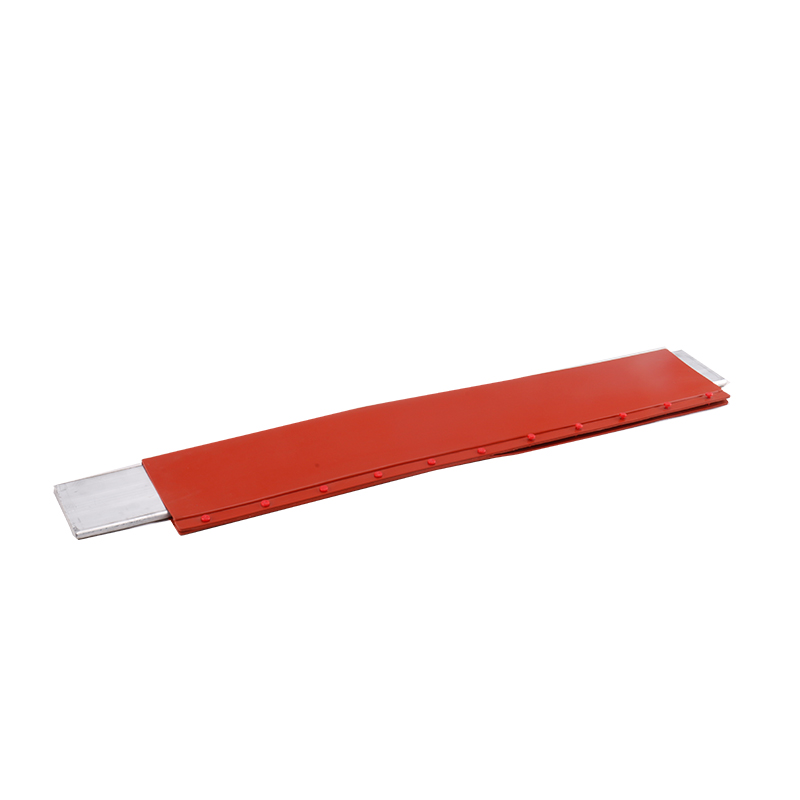

It is used for copper bar or aluminum bar screw lapping in high-voltage switch cabinet, substation and distribution cabinet, and the position where the screw protrudes plays the role of insulation protection.

Product focus: the anti-corrosion and temperature resistance performance of silicone rubber material includes longer service life than that of ordinary polyethylene bus bar box, electrical insulation, anti rust and anti-corrosion of welding points, mechanical protection, and reducing phase spacing.

project	Company	requirement	detection result
tensile strength	Mpa	≥5.0	6.5
elongation at break	％	≥100	158
Water absorption	mg/cm	≤5.0	4.27
breakdown voltage	KV	≥25	31.9
Volume resistivity	Ω·m	≥1.0*1012	1.4*1012
Oxygen index	％	≥25	26.4

Product Name:		规格型号（T,I,L）
Silicone rubber busbar box		40*4 单排
Silicone rubber busbar box		50*5 单排
Silicone rubber busbar box		60*6 单排
Silicone rubber busbar box		80*8 单排
Silicone rubber busbar box		100*10 单排
Silicone rubber busbar box		120*10 单排
Silicone rubber busbar box		40*4
Silicone rubber busbar box		50*5
Silicone rubber busbar box		60*6
Silicone rubber busbar box		80*8
Silicone rubber busbar box		100*10
Silicone rubber busbar box		120*10

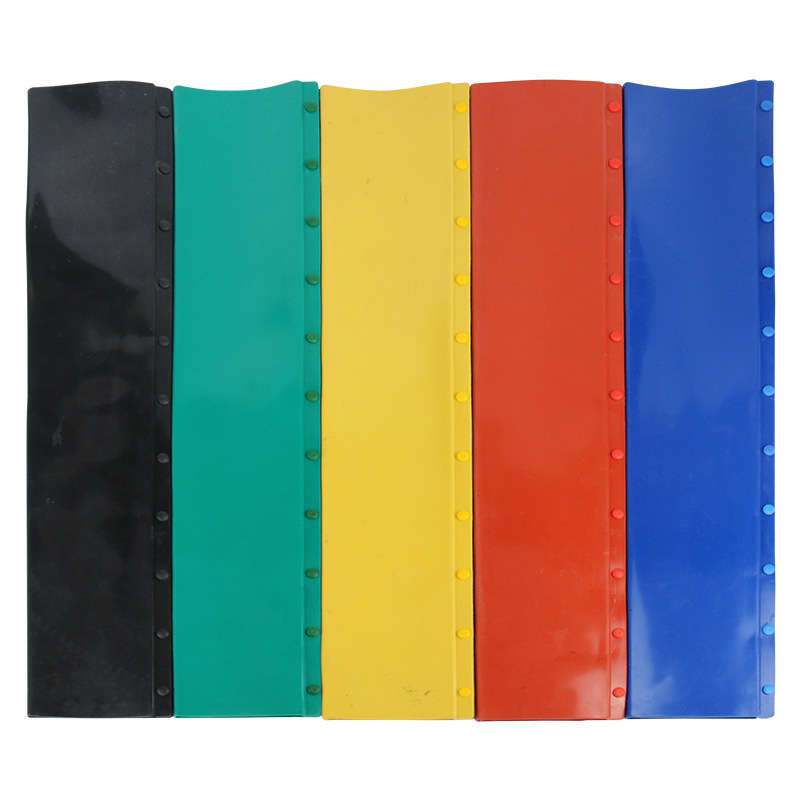

Note: silicone rubber busbar tube & Silicone Rubber busbar box is available in five colors (red, green, yellow, blue and black). The conventional length of silicone rubber busbar tube is 1500px
