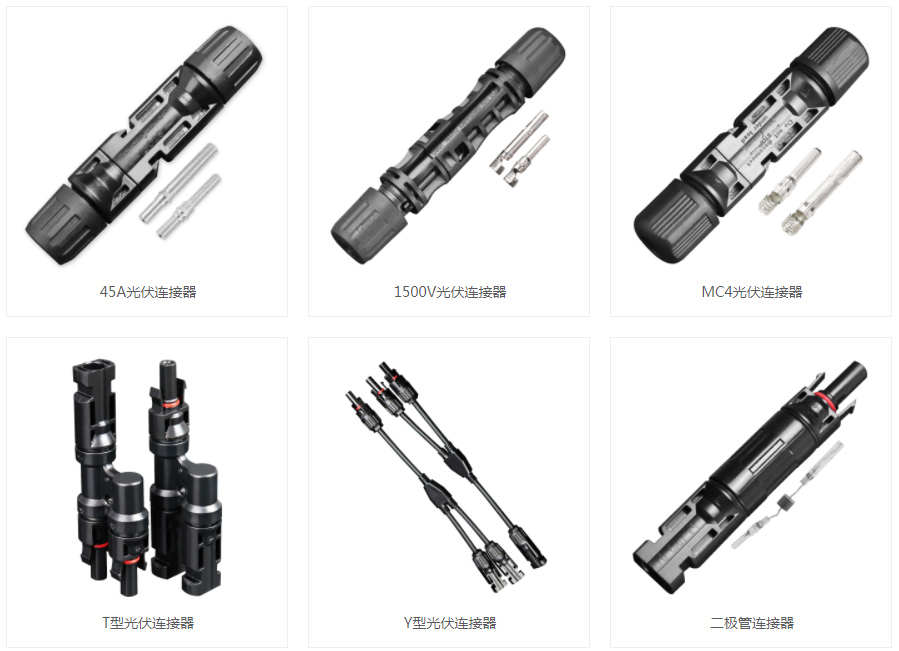

Y-type photovoltaic connector

Y-type photovoltaic connector

Photovoltaic connector is a key part for interconnecting components, combiner box, controller and inverter in photovoltaic power generation system. In a photovoltaic power station, cables and connectors must be relied on to gather the electrical energy of a large number of components and enter the inverter. The photovoltaic system is exposed to the wind, sun and extreme temperature changes for a long time, which requires that the connector must be able to adapt to these harsh environments.

0.00
0.00

Product Description

Photovoltaic connector is a key part for interconnecting components, combiner box, controller and inverter in photovoltaic power generation system. In a photovoltaic power station, cables and connectors must be relied on to gather the electrical energy of a large number of components and enter the inverter. The photovoltaic system is exposed to the wind, sun and extreme temperature changes for a long time, which requires that the connector must be able to adapt to these harsh environments.

Photovoltaic connector is a key part for interconnecting components, combiner box, controller and inverter in photovoltaic power generation system. In a photovoltaic power station, cables and connectors must be relied on to gather the electrical energy of a large number of components and enter the inverter. The photovoltaic system is exposed to the wind, sun and extreme temperature changes for a long time, which requires that the connector must be able to adapt to these harsh environments.



Product Name:

Y3 three-way photovoltaic connector

Plug resistance

0.5mmΩ

Inner core material

Copper tin plating

Wiring mode

Crimping

class of pollution

CAT III/2

Test voltage

6kv（50HZ,1min)

Wiring specification

2.5/4/6 mm2

Wiring range

-40 - + 85 ° C

Rated current

Tee (≤ 1m Ω)

Rated voltage

≤DC 1000V

Flame rating

UL-94-V0

Protection grade

IP67

Shell insulation material

PPO



Product Name:

Y4 four-way photovoltaic connector

Plug resistance

0.5mmΩ

Inner core material

Copper tin plating

Wiring mode

Crimping

class of pollution

CAT III/2

Test voltage

6kv（50HZ,1min)

Wiring specification

2.5/4/6 mm2

Wiring range

-40 - + 85 ° C

Rated current

Tee (≤ 1m Ω)

Rated voltage

≤DC 1000V

Flame rating

UL-94-V0

Protection grade

IP67

Shell insulation material

PPO



Product Name:

Y5 five way photovoltaic connector

Plug resistance

0.5mmΩ

Inner core material

Copper tin plating

Wiring mode

Crimping

class of pollution

CAT III/2

Test voltage

6kv（50HZ,1min)

Wiring specification

2.5/4/6 mm2

Wiring range

-40 - + 85 ° C

Rated current

Five way (≤ 1m Ω)

Rated voltage

≤DC 1000V

Flame rating

UL-94-V0

Protection grade

IP67

Shell insulation material

PPO
