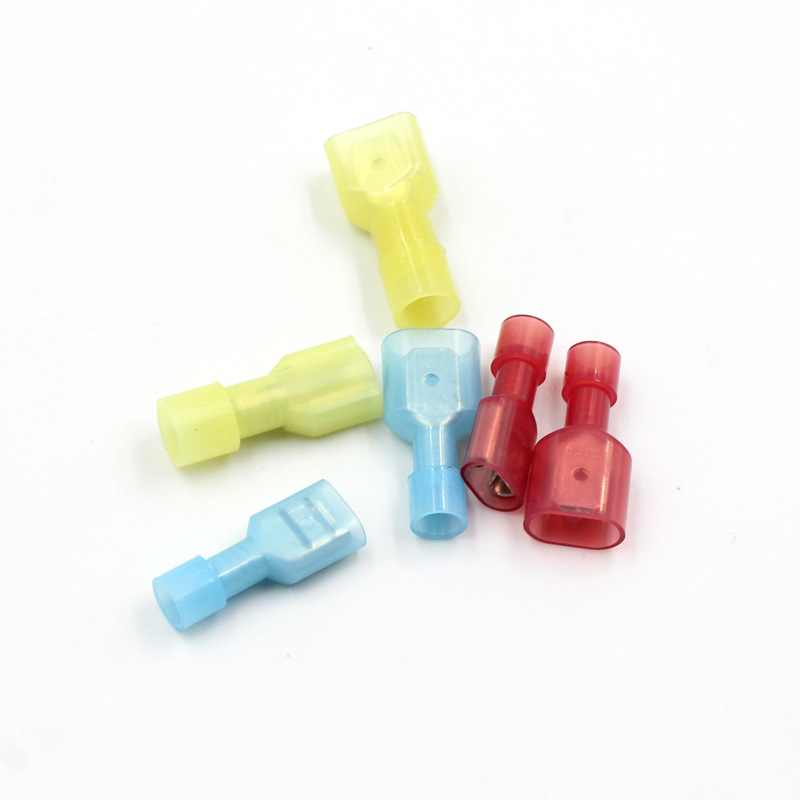

Male and female butt terminals of spring insert

Insulation sleeve material: nylon sheath

End material: Brass

How to use: remove the protective layer of the part of the wire that needs to be connected, insert the wire into the terminal, press with pliers, and butt the male and female

Cable clamp features: pluggable, can quickly replace failed components

Applicable line type: soft and hard wire

List price： 0.00

Price： 0.00

Product Description

Insulation sleeve material: nylon sheath

End material: Brass

How to use: remove the protective layer of the part of the wire that needs to be connected, insert the wire into the terminal, press with pliers, and butt the male and female

Cable clamp features: pluggable, can quickly replace failed components

Applicable line type: soft and hard wire

Insulation sleeve material: nylon sheath

End material: Brass

How to use: remove the protective layer of the part of the wire that needs to be connected, insert the wire into the terminal, press with pliers, and butt the male and female

Cable clamp features: pluggable, can quickly replace failed components

Applicable line type: soft and hard wire

model	style	colour	Current upper limit	Wire range AWG	Wire range square millimetre
FDFN1.25-250	mother	red	10A	22-16	0.5-1.5
FDFN1.25-250	common	red	10A	22-16	0.5-1.5
FDFN2-250	mother	blue	15A	16-14	1.5-2.5
FDFN2-250	common	blue	15A	16-14	1.5-2.5
FDFN5.5-250	mother	yellow	24A	12-10	4-6
FDFN5.5-250	common	yellow	24A	12-10	4-6

Product selection:

model	Plug specifications	W	F	L	B	D	C
FDFN1.25-250	0.8*6.35	6.6	8.8	22.5	11.5	4.25	1.7
FDFN1.25-250	0.8*6.35	6.35	11	24.2	11.5	4.25	1.7
FDFN2-250	0.8*6.35	6.6	8.8	22.5	11.5	4.6	2.3
FDFN2-250	0.8*6.35	6.35	11	24.2	11.5	4.6	2.3
FDFN5.5-250	0.8*6.35	6.6	8.8	22.5	13	6.3	3.4
FDFN5.5-250	0.8*6.35	6.35	11	24.2	13	6.3	3.4
