Heat shrinkable solder ring

Heat shrinkable solder ring

It is composed of low melting point alloy and heat shrinkable pipe, which can replace the old construction method of electric soldering iron welding. It can not only protect the protective contact from air oxidation and other corrosive gases, but also prevent the contact between the contacts. It is widely used in the fields of railways, ships, aerospace, power, electronics and so on.

0.00
0.00

Product Description

It is composed of low melting point alloy and heat shrinkable pipe, which can replace the old construction method of electric soldering iron welding. It can not only protect the protective contact from air oxidation and other corrosive gases, but also prevent the contact between the contacts. It is widely used in the fields of railways, ships, aerospace, power, electronics and so on.

It is composed of low melting point alloy and heat shrinkable pipe, which can replace the old construction method of electric soldering iron welding. It can not only protect the protective contact from air oxidation and other corrosive gases, but also prevent the contact between the contacts. It is widely used in the fields of railways, ships, aerospace, power, electronics and so on.

Specific application: wire connection, soldering and waterproof are completed at one time.

Features: shrinkage ratio 2:1, solder fixed connector, ensuring stability and durability, hot melt adhesive at both ends to ensure waterproof function during use.

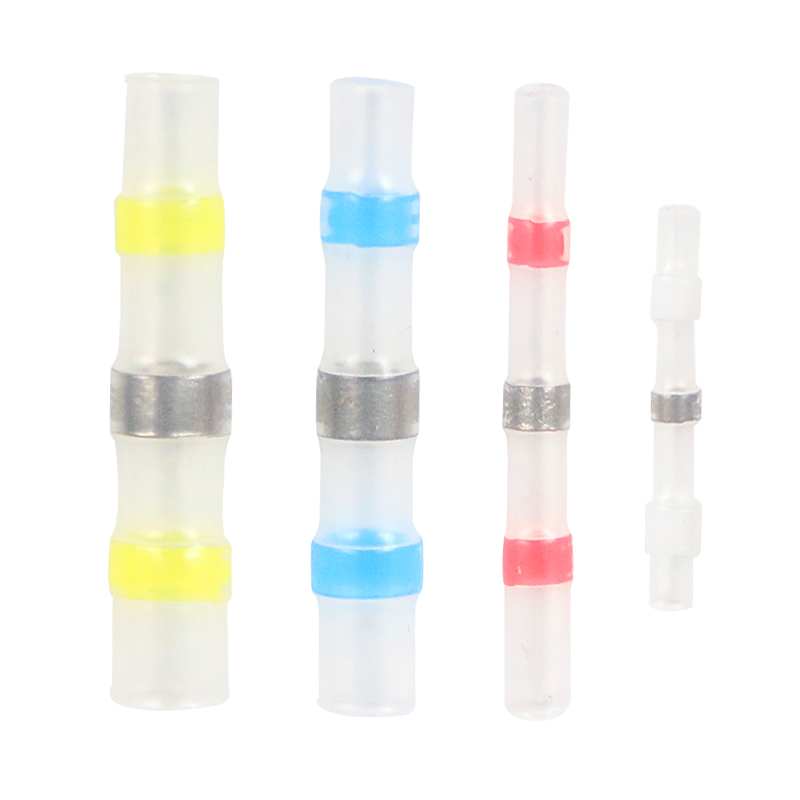

Pipe color indicates applicable size, (red, blue and yellow)

Construction operation temperature range: - 55 ℃ ~ 135 ℃

Complete shrinkage temperature: 100 ℃


model

colour

Applicable conductor range

Length L (mm)

Diameter a (mm)

SST-S11

white

0.25-0.34 mm2

26

2.7mm

SST-S21

red

0.5-1.5 mm2

40

4mm

SST-S31

blue

1.5-2.5 mm2

40

6mm

SST-S41

yellow

4-6 mm2

40

7mm
