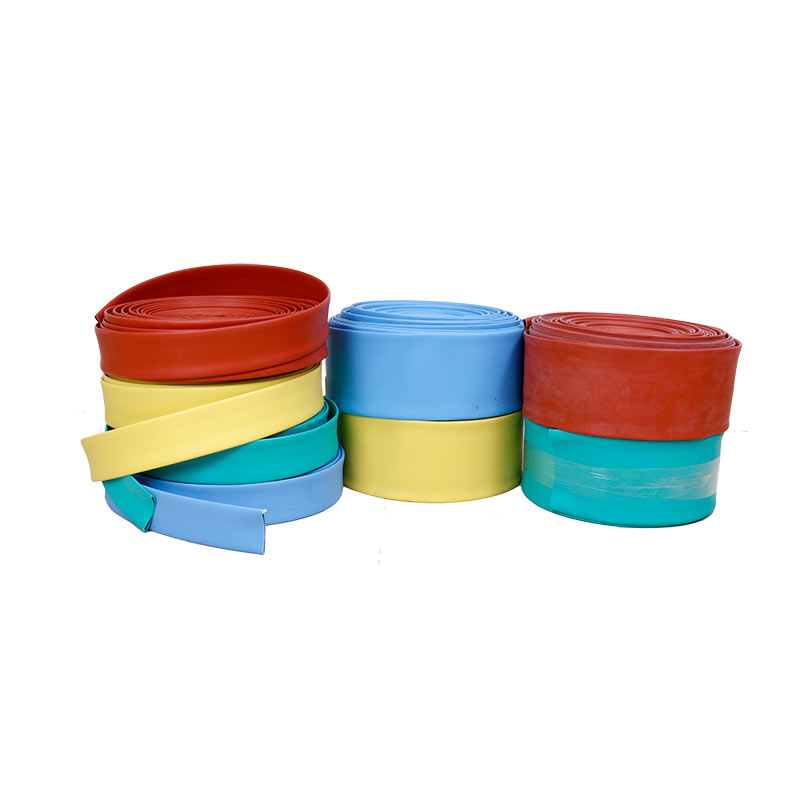

Copper bar heat shrinkable tube

Your current location:

Products

This product is suitable for insulation protection of medium and low voltage switchgear and indoor busbar, and its length can be arbitrarily long.

List price： 0.00

Price： 0.00

Product Description

This product is suitable for insulation protection of medium and low voltage switchgear and indoor busbar, and its length can be arbitrarily long.

Product features:

Thermal shrinkage ratio: 2:1

Halogen free, low smoke, non-toxic, soft

Initial shrinkage temperature: ≥ + 70 ℃

Complete shrinkage temperature: ≥ + 105 ℃

Service temperature: - 55 ℃ ~ + 105 ℃

Environmental protection standards: RoHS, IPC / jedec-j-std-709, class H materials

Standard colors: black, red, yellow, green, blue and other international standard colors

Specification and model	Wall thickness before contraction	Wall thickness after shrinkage	Applicable busbar specification	Package (M / plate)
Φ20/8	≥20	≤8	1.8±0.2	25
Φ30/12	≥30	≤12	1.8±0.2	25
Φ40/16	≥40	≤16	1.8±0.2	25
Φ50/20	≥50	≤20	2.0±0.2	25
Φ60/24	≥60	≤24	2.0±0.2	25
Φ80/32	≥80	≤32	2.2±0.2	25
Φ100/4C	≥100	≤40	2.3±0.2	25
Φ120/50	≥120	≤50	2.3±0.2	25
Φ160/75	≥160	≤75	2.3±0.2	25
Φ200/100	≥180	≤100	2.3±0.2	25
