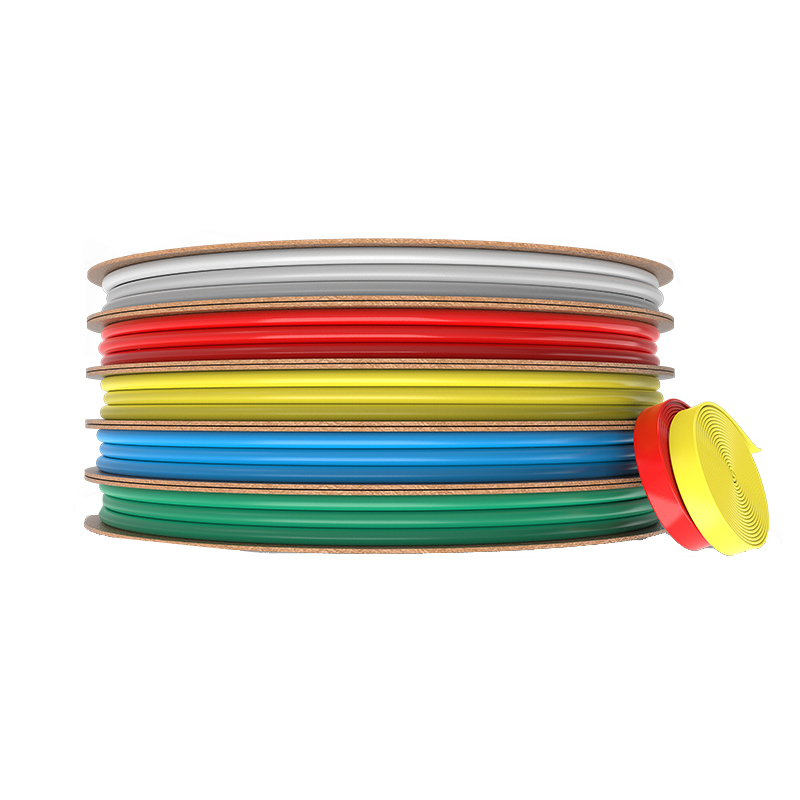

Single wall heat shrinkable tube

Application fields: connectors, household appliances, solder joint protection, wire ends, wire marks, lighting, office equipment, power equipment, communication equipment, resistors and other products

List price： 0.00

Price： 0.00

Product Description

The single wall heat shrinkable pipe is composed of radiation crosslinked polyolefin material, with excellent physical, chemical and electrical properties. Its main functions are wire harness protection, electrical insulation of connectors, anti-corrosion of welding joints, mechanical protection, etc. The products are halogen-free and environmentally friendly, and are widely used in the fields of automobile, electronics, consumer goods, decoration and lighting.

Product features:

L thermal shrinkage ratio: 2:1

L halogen free, low smoke, non-toxic and soft

L initial shrinkage temperature: ≥ + 70 ℃

L complete shrinkage temperature: ≥ + 105 ℃

L service temperature: - 55 ℃ ~ + 105 ℃

L environmental protection standards: RoHS, IPC / jedec-j-std-709, class H materials

L standard color: transparent, black, white, red, yellow, green, blue and other seven international standard colors

performance	index	test method
tensile strength	≥10.4 MPa	ASTM D 2671
elongation at break	≥200%	ASTM D 2671
Axial change rate	-5%~+5%	ASTM D 2671
Withstand voltage (rated voltage 600V)	2500 V, 1min without breakdown	UL224
Volume resistivity	≥1014 Ω·cm	IEC 60093

Specifications	Supply inner diameter (mm)	Full reduced size (mm)		Standard packaging M / plate	Applicable range (mm)
Specifications	Supply inner diameter (mm)	internal diameter	wall thickness	Standard packaging M / plate	Applicable range (mm)
Φ1.0/0.65	1.50±0.20	≤0.65	0.28±0.02	400	0.85~1.1
Φ1.5/0.85	2.00±0.20	≤0.85	0.28±0.02	400	1.0~1.3
Φ2.0/1.00	2.50±0.20	≤1.00	0.28±0.02	400	1.3~1.8
Φ2.5/1.30	3.00±0.20	≤1.30	0.28±0.02	400	1.5~2.3
Φ3.0/1.50	3.50±0.20	≤1.50	0.30±0.02	200	1.8~2.8
Φ3.5/1.80	4.00±0.20	≤1.80	0.30±0.02	200	2.0~3.3
Φ4.0/2.00	4.70±0.20	≤2.00	0.35±0.02	200	2.5~3.8
Φ4.5/2.30	5.00±0.20	≤2.30	0.35±0.02	200	2.5~4.0
Φ5.0/2.50	5.50±0.20	≤2.50	0.35±0.02	100	3.0~4.5
Φ6.0/3.00	6.50±0.20	≤3.00	0.35±0.02	100	3.5~5.4
Φ7.0/3.50	7.50±0.30	≤3.50	0.40±0.05	100	4.0~6.3
Φ8.0/4.00	8.50±0.30	≤4.00	0.40±0.05	100	4.5~7.2
Φ9.0/4.50	9.50±0.30	≤4.50	0.45±0.05	100	5.0~8.0
Φ10/5.00	10.50±0.30	≤5.00	0.45±0.05	100	5.5~9.0
Φ11/5.50	11.50±0.30	≤5.50	0.45±0.05	100	6.0~10
Φ12/6.00	12.50±0.30	≤6.00	0.45±0.05	100	6.5~11
Φ13/6.50	13.50±0.30	≤6.50	0.45±0.05	100	6.7~12
Φ14/7.00	14.50±0.30	≤7.00	0.45±0.05	100	7.5~13
Φ15/7.50	15.50±0.40	≤7.50	0.50±0.05	100	8.0~14
Φ16/8.00	16.50±0.40	≤8.00	0.50±0.05	100	8.5~15
Φ17/8.50	17.50±0.40	≤8.50	0.50±0.05	100	9.0~16
Φ18/9.00	19.00±0.50	≤9.00	0.50±0.05	100	10.0~17
Φ20/10.0	22.00±0.50	≤10.0	0.55±0.05	100	11.0~19
Φ22/11.0	24.00±0.50	≤11.0	0.55±0.05	100	12.5~22
Φ25/12.5	26.00±0.50	≤12.5	0.60±0.05	25	14~24
Φ28/14.0	29.00±0.50	≤14.0	0.70±0.05	25	15~29
Φ30/15.0	31.50±1.00	≤15.0	0.70±0.05	25	17.5~29.0
Φ35/17.5	36.50±1.00	≤17.5	0.80±0.05	25	20~30
Φ40/20.0	41.50±1.00	≤20.0	0.80±0.05	25	22~35
Φ45/22.0	46.50±1.50	≤22.5	0.80±0.05	25	25~40
Φ50/25.0	≥50	≤25.0	0.80±0.05	25	28~45
