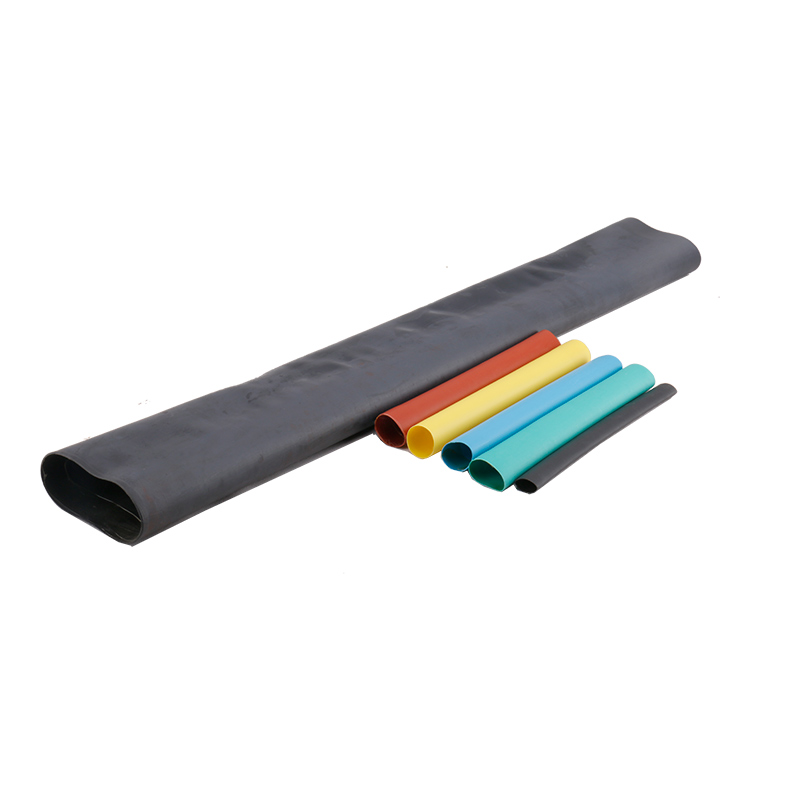

Low pressure heat shrinkable middle

Low pressure heat shrinkable middle

Application fields: single core, two core, three core, four core (also divided into four core and 3 + 1), five core (also divided into five core, 3 + 2 and 4 + 1) cross-linked power cables play the role of sealing, insulation and branching. When the cable length is insufficient during construction, use intermediate joints to connect and prolong the effect.

0.00
0.00

Product Description

Application fields: single core, two core, three core, four core (also divided into four core and 3 + 1), five core (also divided into five core, 3 + 2 and 4 + 1) cross-linked power cables play the role of sealing, insulation and branching. When the cable length is insufficient during construction, use intermediate joints to connect and prolong the effect.

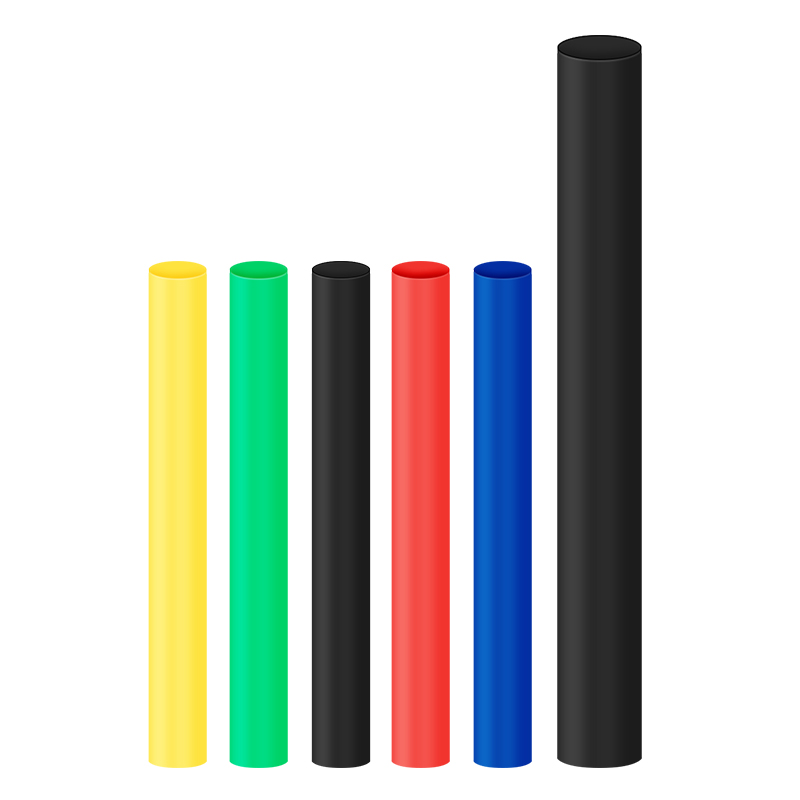

Product features: both ends of the outer protective sleeve and the insulating pipe are coated with hot-melt adhesive, which has excellent electrical and mechanical properties and can be used for a long time in a disadvantaged environment.

Experimental project

Standard requirements

experimental result

conclusion

1min power frequency withstand voltage test

4KV, no flashover, no breakdown

4KV / 1min, no flashover, no breakdown

qualified

Load cycle test (three cycles)

Conductor temperature during 5h heating, 3h cooling and heating: 75 ℃

Evaluated by:


4h power frequency withstand voltage test

2.4kv without flashover and breakdown

2.4kv/4h, no flashover and no breakdown

qualified


Product Name:

Specification and model

Applicable cable section

Heat shrinkable single core intermediate joint

JRSY-1/1.0

10-16mm2

JRSY-1/1.1

25-50mm2

JRSY-1/1.2

70-120mm2

JRSY-1/1.3

150-240mm2

JRSY-1/1.4

300-400mm2

Heat shrinkable two core intermediate joint

JRSY-1/2.0

10-16mm2

JRSY-1/2.1

25-50mm2

JRSY-1/2.2

70-120mm2

JRSY-1/2.3

150-240mm2

JRSY-1/2.4

300-400mm2

Heat shrinkable three core intermediate joint

JRSY-1/3.0

10-16mm2

JRSY-1/3.1

25-50mm2

JRSY-1/3.2

70-120mm2

JRSY-1/3.3

150-240mm2

JRSY-1/3.4

300-400mm2

Heat shrinkable four core intermediate joint

JRSY-1/4.0

10-16mm2

JRSY-1/4.1

25-50mm2

JRSY-1/4.2

70-120mm2

JRSY-1/4.3

150-240mm2

JRSY-1/4.4

300-400mm2

Heat shrinkable five core intermediate joint

JRSY-1/5.0

10-16mm2

JRSY-1/5.1

25-50mm2

JRSY-1/5.2

70-120mm2

JRSY-1/5.3

150-240mm2

JRSY-1/5.4

300-400mm2
