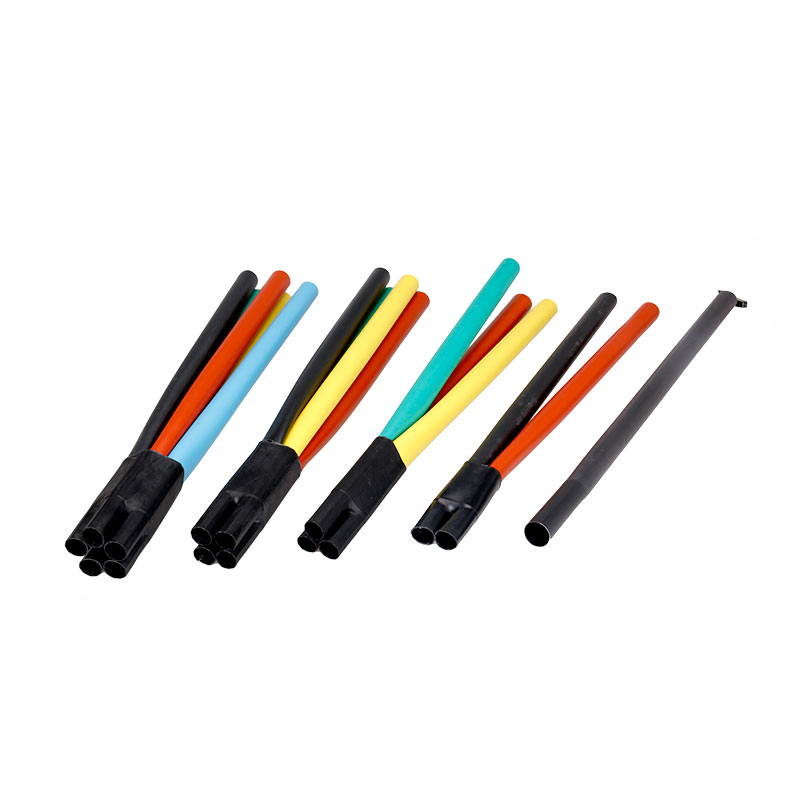

Low pressure heat shrink terminal

Your current location:

Products

It is widely used in power industry, communication, automobile, ship, aircraft manufacturing and other fields.

List price： 0.00

Price： 0.00

Product Description

It is widely used in power industry, communication, automobile, ship, aircraft manufacturing and other fields.

Product advantages:

1. The finger sleeve can be shrunk without a cushion tube.

2. The insulation tube of terminal head is red, yellow, green, blue and black direct phase separation.

3. Fast shrinkage and no cracking

4. Flame retardant.

Experimental project	Standard requirements	experimental result	conclusion
1min power frequency withstand voltage test	4KV, no flashover, no breakdown	4KV / 1min, no flashover, no breakdown	qualified
Load cycle test (three cycles)	Conductor temperature during 5h heating, 3h cooling and heating: 75 ℃	Evaluated by:
4h power frequency withstand voltage test	2.4kv without flashover and breakdown	2.4kv/4h, no flashover and no breakdown	qualified

Product Name:	Specification and model	Applicable cable section
Heat shrinkable single core terminal	TRSY-1/1.0	10-16mm2
	TRSY-1/1.0	10-16mm2
	TRSY-1/1.1	25-50mm2
	TRSY-1/1.2	70-120mm2
	TRSY-1/1.3	150-240mm2
	TRSY-1/1.4	300-400mm2
Heat shrinkable two core terminal	TRSY-1/2.0	10-16mm2
	TRSY-1/2.0	10-16mm2
	TRSY-1/2.1	25-50mm2
	TRSY-1/2.2	70-120mm2
	TRSY-1/2.3	150-240mm2
	TRSY-1/2.4	300-400mm2
Heat shrinkable three core terminal	TRSY-1/3.0	10-16mm2
	TRSY-1/3.0	10-16mm2
	TRSY-1/3.1	25-50mm2
	TRSY-1/3.2	70-120mm2
	TRSY-1/3.3	150-240mm2
	TRSY-1/3.4	300-400mm2
Heat shrinkable four core terminal	TRSY-1/4.0	10-16mm2
	TRSY-1/4.0	10-16mm2
	TRSY-1/4.1	25-50mm2
	TRSY-1/4.2	70-120mm2
	TRSY-1/4.3	150-240mm2
	TRSY-1/4.4	300-400mm2
Heat shrinkable five core terminal	TRSY-1/0.0	4-6mm2
	TRSY-1/5.0	10-16mm2
	TRSY-1/5.1	25-50mm2
	TRSY-1/5.2	70-120mm2
	TRSY-1/5.3	150-240mm2
	TRSY-1/5.4	300-400mm2
