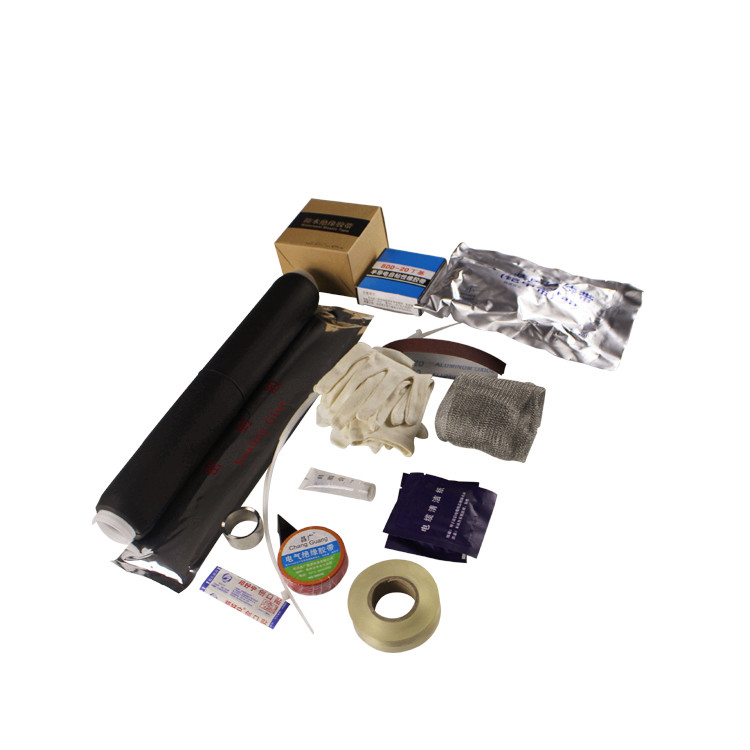

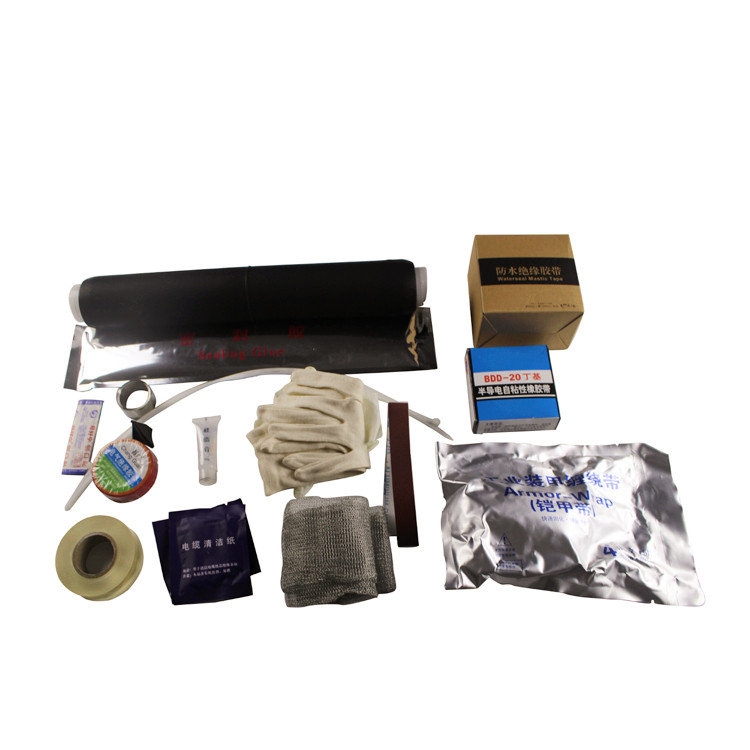

Medium pressure single core intermediate joint

Medium pressure single core intermediate joint

The intermediate joint adopts a three-layer waterproof sealing process to ensure excellent sealing and moisture-proof performance.

0.00
0.00

Product Description

The intermediate joint adopts a three-layer waterproof sealing process to ensure excellent sealing and moisture-proof performance.


Product Description

Full Cold Shrinkage Technology: No need for hot work and special tools, nor the trouble of gradually inserting. Just gently pull out the core rope, and it will rely on its own elastic retraction to tightly adhere to the cable, completing the installation.

Reliable insulation: Imported liquid silicone rubber is used to ensure excellent insulation and high recovery elasticity. After installation, it always provides constant and lasting radial pressure to the cable body, with a small amount of partial discharge, and "breathes with" the cable body.

Good sealing performance: The intermediate joint adopts a three-layer waterproof sealing process, with excellent sealing and hydrophobicity, ensuring excellent elastic sealing and moisture-proof performance of the accessories.

Easy installation: simple installation, low technical dependency on operation, short stripping distance during cable preprocessing, and small installation space required. The grounding adopts a constant force spring process, which eliminates the need for welding or copper binding, making it faster and more reliable.

Widely used: anti pollution, aging resistance, good hydrophobicity, corrosion resistance and UV resistance, ensuring stable long-term performance. With excellent cold resistance, it is particularly suitable for high altitude areas, cold areas, humid areas, salt fog areas, and heavily polluted areas.


8.7/15kV中间接头试验项目

中间接头检测项目及其标准要求

5min工频耐压实验

39kV,未闪络,未击穿

室温下局部放电试验

15kV下,放电量不大于10pC

恒压负荷循环电压试验(空气中)

23kV,导体加热至(95-100)℃,每一循环为8h,其中加热5h,冷却3h,共60次循环。

高温下局部放电试验

导体加热至95-100℃,15kV下,放电量不大于10pC

恒压负荷循环电压试验(水中)

23kV,导体加热至(95-100)℃,每一循环为8h,其中加热5h,冷却3h,共30次循环。

雷电冲击电压试验

95kV,正负极性各10次,未闪络,未击穿

15min交流耐压试验

23kV,未闪络,未击穿


产品名称

规格型号

适用电缆截面

冷缩单芯中间接头

JLSY-15/1.1

25-50mm²

JLSY-15/1.2

70-120mm²

JLSY-15/1.3

150-240mm²

JLSY-15/1.4

300-500mm²

冷缩三芯中间接头

JLSY-15/3.1

25-50mm²

JLSY-15/3.2

70-120mm²

JLSY-15/3.3

150-240mm²

JLSY-15/3.4

300-500mm²
