With excellent cold resistance, it is particularly suitable for high altitude areas, cold areas, humid areas, salt fog areas, and heavily polluted areas.
With excellent cold resistance, it is particularly suitable for high altitude areas, cold areas, humid areas, salt fog areas, and heavily polluted areas.

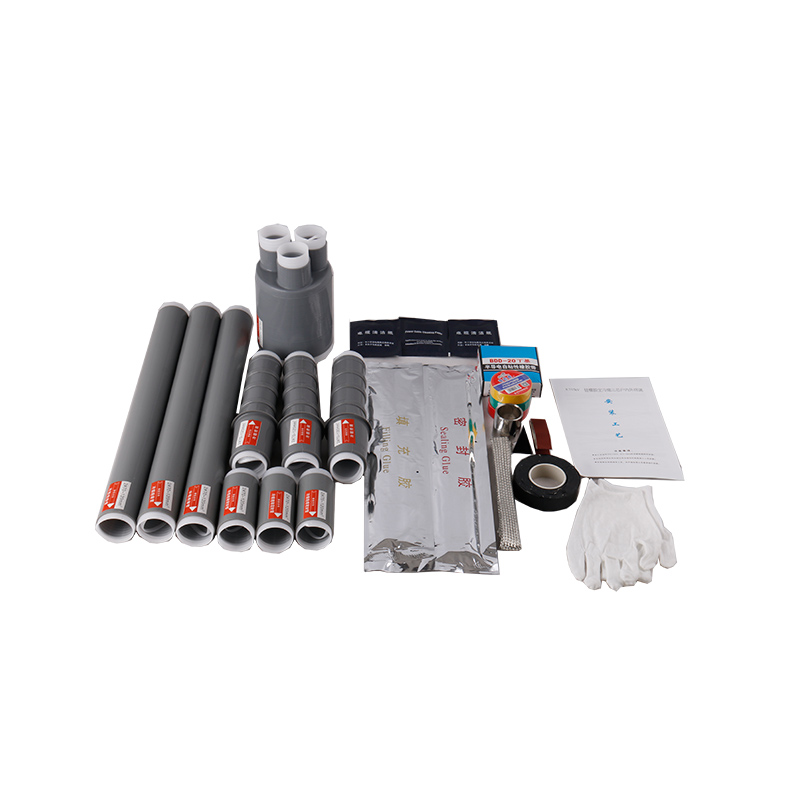

Full Cold Shrinkage Technology: No need for hot work and special tools, nor the trouble of gradually inserting. Just gently pull out the core rope, and it will rely on its own elastic retraction to tightly adhere to the cable, completing the installation.
Reliable insulation: Imported liquid silicone rubber is used to ensure excellent insulation and high recovery elasticity. After installation, it always provides constant and lasting radial pressure to the cable body, with a small amount of partial discharge, and "breathes with" the cable body.
Good sealing performance: The main body of the terminal is matched with a cold shrinkable finger sleeve, a cold shrinkable insulating tube, and a cold shrinkable terminal sealing tube to ensure excellent elastic sealing and moisture resistance of the accessories.
Easy installation: simple installation, low technical dependency on operation, short stripping distance during cable preprocessing, and small installation space required. The grounding adopts a constant force spring process, which eliminates the need for welding or copper binding, making it faster and more reliable.
Widely used: anti pollution, aging resistance, good hydrophobicity, corrosion resistance and UV resistance, ensuring stable long-term performance. With excellent cold resistance, it is particularly suitable for high altitude areas, cold areas, humid areas, salt fog areas, and heavily polluted areas.
8.7/15kV终端试验项目
试验项目 | 标准要求 |
1min户外终端淋雨工频电压试验 | 35kV,未闪络,未击穿 |
5min工频耐压试验 | 39kV,未闪络,未击穿 |
局部放电试验 | 15kV下放电量不大于10pC |
恒压负荷循环电压试验(空气中) | 23kV,导体加热至(95-100)℃,每一循环为8h,其中加热5h,冷却3h,共60次循环 |
雷电冲击电压试验 | 95kV,正负极性各10次,未闪络,未击穿 |
15min交流耐压试验 | 23kV,未闪络,未击穿 |
户外终端盐雾试验 | 11kV,1000h,未闪络,未击穿 |
户内终端潮湿试验 | 11kV,300h,未闪络,未击穿 |
产品名称 | 规格型号 | 适用电缆截面 |
冷缩单芯户内终端 | NLSY-15/1.1 | 25-50mm2 |
NLSY-15/1.2 | 70-120mm2 | |
NLSY-15/1.3 | 150-240mm2 | |
NLSY-15/1.4 | 300-500mm2 | |
冷缩单芯户外终端 | WLSY-15/1.1 | 25-50mm2 |
WLSY-15/1.2 | 70-120mm2 | |
WLSY-15/1.3 | 150-240mm2 | |
WLSY-15/1.4 | 300-500mm2 | |
冷缩三芯户内终端 | NLSY-15/3.1 | 25-50mm2 |
NLSY-15/3.2 | 70-120mm2 | |
NLSY-15/3.3 | 150-240mm2 | |
NLSY-15/3.4 | 300-500mm2 | |
冷缩三芯户外终端 | WLSY-15/3.1 | 25-50mm2 |
WLSY-15/3.2 | 70-120mm2 | |
WLSY-15/3.3 | 150-240mm2 | |
WLSY-15/3.4 | 300-500mm2 |
