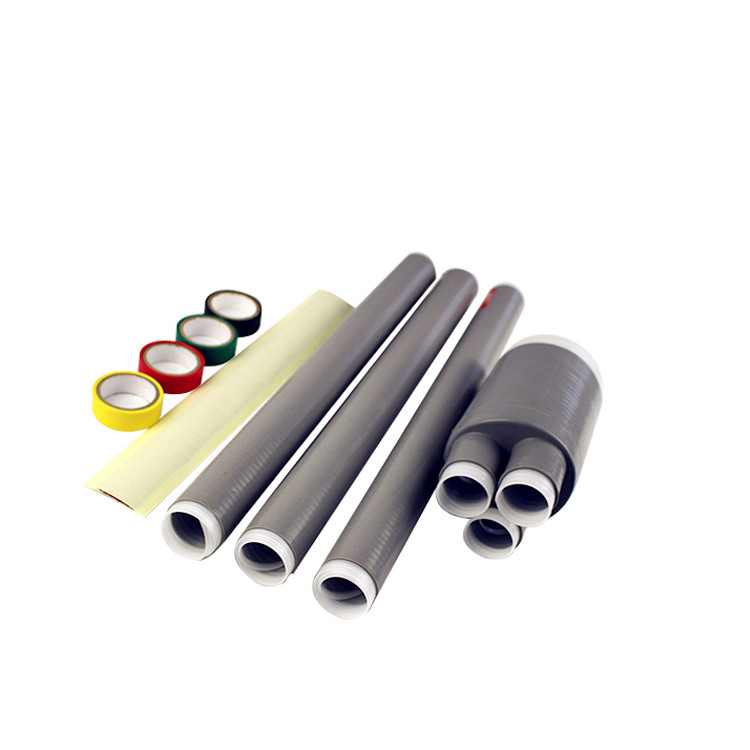

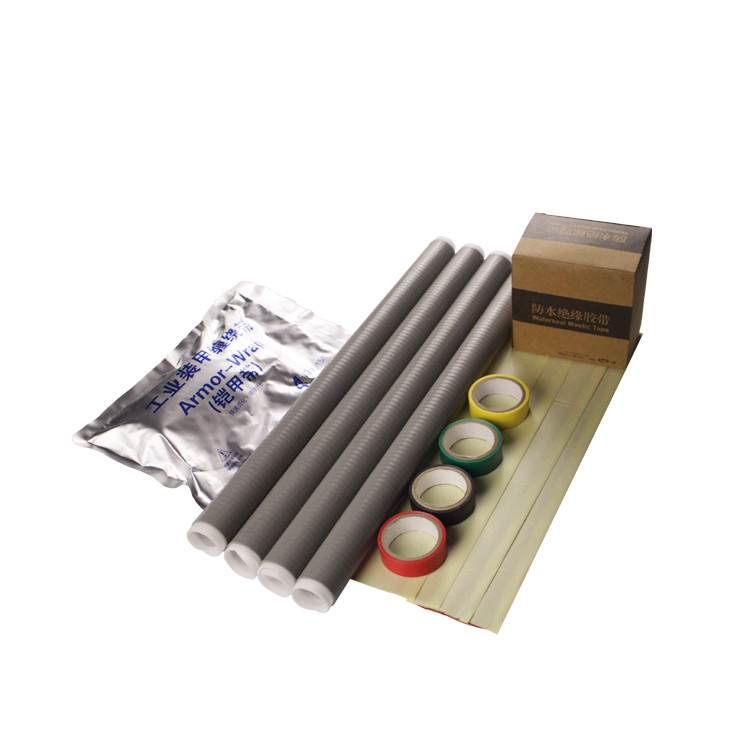

Low pressure cold shrink terminal

It is widely used in various fields such as electric power, petrochemical industry, metallurgy, railways, ports, and construction.

List price： 0.00

Price： 0.00

Product Description

It is widely used in various fields such as electric power, petrochemical industry, metallurgy, railways, ports, and construction.

It integrates waterproofing, stress control, shielding, and insulation. It has good electrical and mechanical properties and can be used for a long time under various harsh environmental conditions. It has the advantages of light weight and convenient installation.

Product features: During product installation, it is convenient to install and repair without using open flames and professional tools. It is made of liquid silicone rubber and has good corrosion and temperature resistance.

序号

检测项目

单位

技术要求

检测结果

单项评定

受检绝缘线芯标志

交流耐压试验

—8kV, 5min

—湿态，7. 2kV, Imin

负荷循环试验

(3个周期)

交流耐压试验

(7. 2kV, 4h)

检验

不击穿、不闪络

导体通电流,加热周期8h,稳定温度N 2h,冷却N3h,加热时导体温度为 (95-100) °C

不击穿、不闪络

以下空白

红芯黄芯绿芯

通过通过通过

符合符合符合

通过通过通过

终端的冷收缩部件、分支套、管件及带材未岀现裂纹

注：“单项评定”符号含义：P：检验结果符合要求；F：检验结果不符合要求；N：检验结果不要求判定。

产品名称	规格型号	适用电缆截面
冷缩单芯终端头	LS-1/1.0	10-16mm2
	LS-1/1.1	25-50mm2
	LS-1/1.2	70-120mm2
	LS-1/1.3	150-240mm2
	LS-1/1.4	300-500mm2
冷缩二芯终端头	LS-1/2.0	10-16mm2
	LS-1/2.1	25-50mm2
	LS-1/2.2	70-120mm2
	LS-1/2.3	150-240mm2
	LS-1/2.4	300-500mm2
冷缩三芯终端头	LS-1/3.0	10-16mm2
	LS-1/3.1	25-50mm2
	LS-1/3.2	70-120mm2
	LS-1/3.3	150-240mm2
	LS-1/3.4	300-500mm2
冷缩四芯终端头	LS-1/4.0	10-16mm2
	LS-1/4.1	25-50mm2
	LS-1/4.2	70-120mm2
	LS-1/4.3	150-240mm2
	LS-1/4.4	300-500mm2
冷缩五芯终端头	LS-1/5.0	10-16mm2
	LS-1/5.1	25-50mm2
	LS-1/5.2	70-120mm2
	LS-1/5.3	150-240mm2
	LS-1/5.4	300-500mm2
