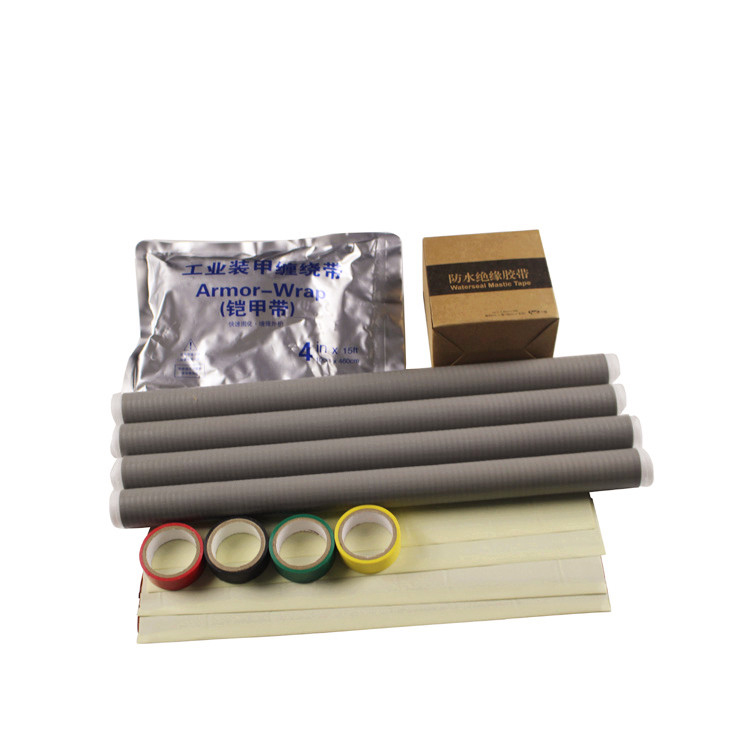

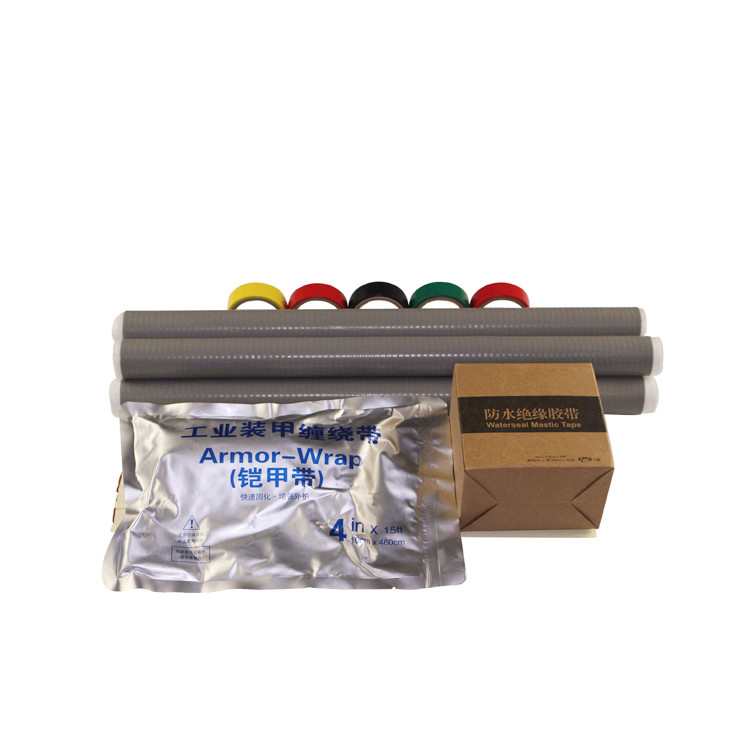

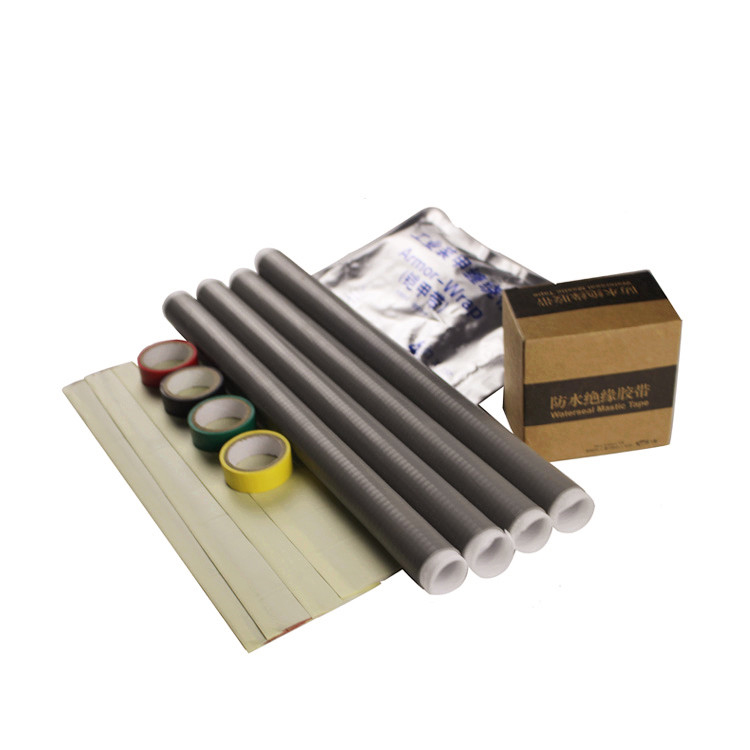

Low pressure cold shrink intermediate joint

It is widely used in various fields such as electric power, petrochemical industry, metallurgy, railways, ports, and construction.

List price： 0.00

Price： 0.00

Product Description

It is widely used in various fields such as electric power, petrochemical industry, metallurgy, railways, ports, and construction.

It integrates waterproofing, stress control, shielding, and insulation. It has good electrical and mechanical properties and can be used for a long time under various harsh environmental conditions. It has the advantages of light weight and convenient installation.

Product features: Made of imported silicone rubber, it has excellent properties such as weather resistance, acid and alkali resistance, UV resistance, and hydrophobicity.

0.6/1kV中间接头试验项目

序号	项目	参数
1	型号	0.6/1kVWLT
2	标称电压(kV)	0.6/1
3	允许最高持续运行电压(kV)	1.2
4	正常运行温度(℃)	90
5	短路时温度(℃)	250
6	传输容量	与电缆一致
7	短路容量	与电缆一致

产品名称	规格型号	适用电缆截面
冷缩单芯中间接头	JLS-1/1.0	10-16mm2
	JLS-1/1.1	25-50mm2
	JLS-1/1.2	70-120mm2
	JLS-1/1.3	150-240mm2
	JLS-1/1.4	300-500mm2
冷缩二芯中间接头	JLS-1/2.0	10-16mm2
	JLS-1/2.1	25-50mm2
	JLS-1/2.2	70-120mm2
	JLS-1/2.3	150-240mm2
	JLS-1/2.4	300-500mm2
冷缩三芯中间接头	JLS-1/3.0	10-16mm2
	JLS-1/3.1	25-50mm2
	JLS-1/3.2	70-120mm2
	JLS-1/3.3	150-240mm2
	JLS-1/3.4	300-500mm2
冷缩四芯中间接头	JLS-1/4.0	10-16mm2
	JLS-1/4.1	25-50mm2
	JLS-1/4.2	70-120mm2
	JLS-1/4.3	150-240mm2
	JLS-1/4.4	300-500mm2
冷缩五芯中间接头	JLS-1/5.0	10-16mm2
	JLS-1/5.1	25-50mm2
	JLS-1/5.2	70-120mm2
	JLS-1/5.3	150-240mm2
	JLS-1/5.4	300-500mm2
