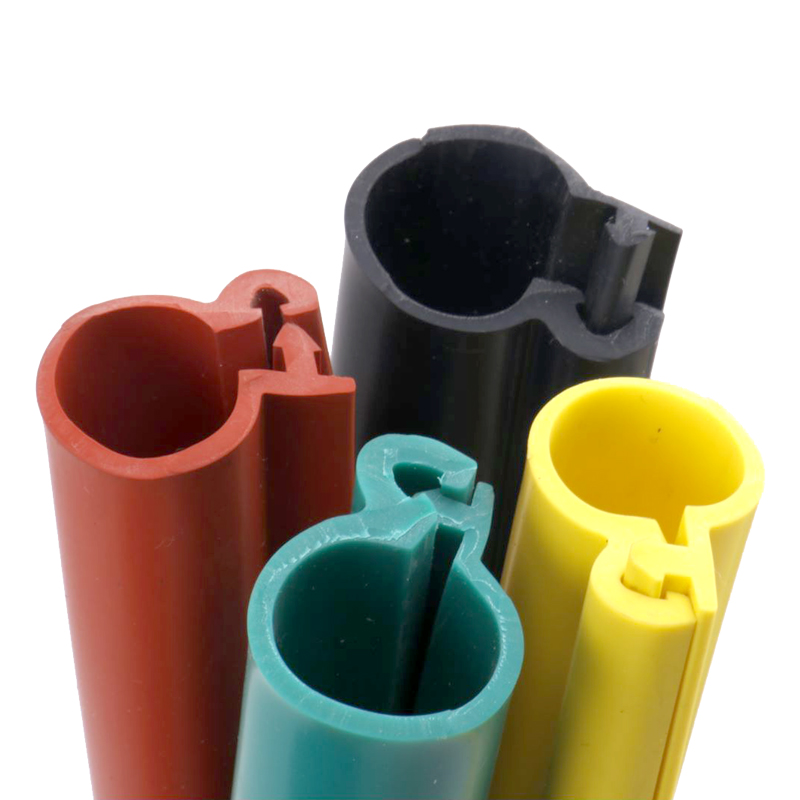

Silicone rubber snap type insulating sleeves are mainly used in overhead railway systems when crossing tunnels, bridges, and tropical rainforests., Used to improve its insulation performance, prevent the occurrence of short circuits, and effectively strengthen the insulation protection of exposed antenna lines. It is mainly used for line crossing insulation protection in overhead bare line 15 dry volts and 35 kv power systems It is mainly used to strengthen insulation and protect antenna exposed wires through forests, buildings, tunnels, rivers, and so on. It can also be applied to railway systems where the insulator portion of the antenna is exposed to improve its insulation performance.
Silicone rubber snap type insulating sleeves are mainly used in overhead railway systems when crossing tunnels, bridges, and tropical rainforests., Used to improve its insulation performance, prevent the occurrence of short circuits, and effectively strengthen the insulation protection of exposed antenna lines. It is mainly used for line crossing insulation protection in overhead bare line 15 dry volts and 35 kv power systems It is mainly used to strengthen insulation and protect antenna exposed wires through forests, buildings, tunnels, rivers, and so on. It can also be applied to railway systems where the insulator portion of the antenna is exposed to improve its insulation performance.
Silicone rubber snap type insulating sleeves are mainly used in overhead railway systems when crossing tunnels, bridges, and tropical rainforests., Used to improve its insulation performance, prevent the occurrence of short circuits, and effectively strengthen the insulation protection of exposed antenna lines. It is mainly used for line crossing insulation protection in overhead bare line 15 dry volts and 35 kv power systems It is mainly used to strengthen insulation and protect antenna exposed wires through forests, buildings, tunnels, rivers, and so on. It can also be applied to railway systems where the insulator portion of the antenna is exposed to improve its insulation performance.
介电常数 Dielectric constant | 2-3 | 2.3 | GB/T 1409-2006 | |
邵氏硬度Shaw hardness | 度 | 70±5 | 71 | GB/T 531 |
机械性能 Mechanical properties of: | GB/T 528 | |||
老化前 Before the aging: | GB/T 528 | |||
抗张强度 Tensile strength | MPA | N4.0 | 5.5 | GB/T 528 |
断裂伸长率 Elongation at break | % | >200 | 243 | GB/T 528 |
老化后(18or X7d) After aging: | GB/T 528 | |||
抗张强度变化率 Tensile strength variation | % | ±30 | 13 | GB/T 528 |
断裂伸长率变化率The rate of elongation | % | ±30 | -22 | GB/T 528 |
低温伸长率 Low elongation(-15°C、2h) | % | N20 | 190 | GB/T 2951.4-1997 |
低温柔韧性 Low temperature flexibility(-50XS x4h) | 无裂纹 | 无裂纹 | UL224-2004 | |
高温抗开裂 | 无裂纹 | 无裂纹 | GB/T2951.6-1997 |
型号 | 包装 | 电缆面积 |
10 | 20米一盘 | 35平方 |
12 | 20米一盘 | 50平方 |
14 | 20米一盘 | 70平方 |
15 | 20米一盘 | 95平方 |
16 | 20米一盘 | 120平方 |
18 | 20米一盘 | 150平方 |
20 | 20米一盘 | 185平方 |
24 | 20米一盘 | 240平方 |
28 | 20米一盘 | 300平方 |
30 | 20米一盘 | 400平方 |
35 | 20米一盘 | 500平方 |
38 | 20米一盘 | 630平方 |
40 | 20米一盘 | 800平方 |
