Low voltage bare conductor bushing

Low voltage bare conductor bushing

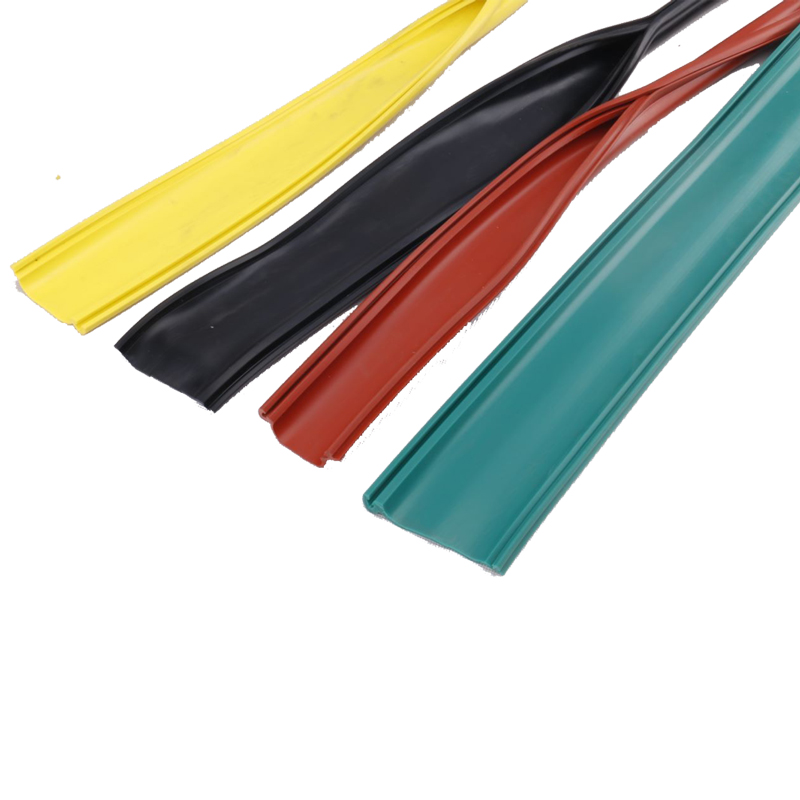

Silicone rubber snap type insulating sleeves are mainly used in overhead railway systems when crossing tunnels, bridges, and tropical rainforests., Used to improve its insulation performance, prevent the occurrence of short circuits, and effectively strengthen the insulation protection of exposed antenna lines. It is mainly used for line crossing insulation protection in overhead bare line 15 dry volts and 35 kv power systems It is mainly used to strengthen insulation and protect antenna exposed wires through forests, buildings, tunnels, rivers, and so on. It can also be applied to railway systems where the insulator portion of the antenna is exposed to improve its insulation performance.

0.00
0.00

Product Description

Silicone rubber snap type insulating sleeves are mainly used in overhead railway systems when crossing tunnels, bridges, and tropical rainforests., Used to improve its insulation performance, prevent the occurrence of short circuits, and effectively strengthen the insulation protection of exposed antenna lines. It is mainly used for line crossing insulation protection in overhead bare line 15 dry volts and 35 kv power systems It is mainly used to strengthen insulation and protect antenna exposed wires through forests, buildings, tunnels, rivers, and so on. It can also be applied to railway systems where the insulator portion of the antenna is exposed to improve its insulation performance.


Silicone rubber snap type insulating sleeves are mainly used in overhead railway systems when crossing tunnels, bridges, and tropical rainforests., Used to improve its insulation performance, prevent the occurrence of short circuits, and effectively strengthen the insulation protection of exposed antenna lines. It is mainly used for line crossing insulation protection in overhead bare line 15 dry volts and 35 kv power systems It is mainly used to strengthen insulation and protect antenna exposed wires through forests, buildings, tunnels, rivers, and so on. It can also be applied to railway systems where the insulator portion of the antenna is exposed to improve its insulation performance.

介电常数 Dielectric constant


2-3

2.3

GB/T 1409-2006

邵氏硬度Shaw hardness

70±5

71

GB/T 531

机械性能 Mechanical properties of:




GB/T 528

老化前 Before the aging:




GB/T 528

抗张强度 Tensile strength

MPA

N4.0

5.5

GB/T 528

断裂伸长率 Elongation at break

%

>200

243

GB/T 528

老化后(18or X7d) After aging:




GB/T 528

抗张强度变化率 Tensile strength variation

%

±30

13

GB/T 528

断裂伸长率变化率The rate of elongation

%

±30

-22

GB/T 528

低温伸长率 Low elongation(-15°C、2h)

%

N20

190

GB/T 2951.4-1997

低温柔韧性 Low temperature flexibility(-50XS x4h)


无裂纹

无裂纹

UL224-2004

高温抗开裂


无裂纹

无裂纹

GB/T2951.6-1997


型号

包装

电缆面积

10

20米一盘

35平方

12

20米一盘

50平方

14

20米一盘

70平方

15

20米一盘

95平方

16

20米一盘

120平方

18

20米一盘

150平方

20

20米一盘

185平方

24

20米一盘

240平方

28

20米一盘

300平方

30

20米一盘

400平方

35

20米一盘

500平方

38

20米一盘

630平方

40

20米一盘

800平方
